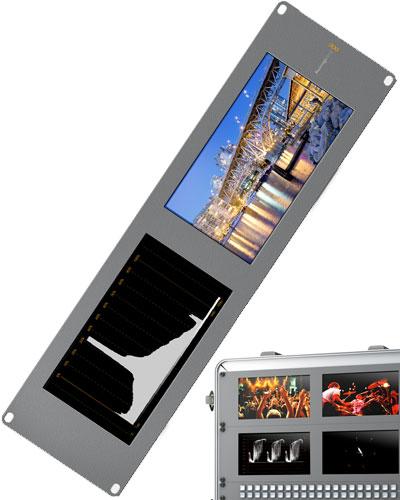

Blackmagic SmartView Duo SD/HD SDI
production monitor
Available for hire: The Blackmagic Design SmartView Duo location/studio rack mountable monitor Perfect for post production, broadcast or live events. SmartView Duo features two independent 8" displays in a 3 RU design that’s less than one...
Blackmagic Design
[bmd-SVDuo]



£12.5/day (+ VAT)    £15.00/day (inc VAT)
Qty:

Available for hire: The Blackmagic Design SmartView Duo location/studio rack mountable monitor

Perfect for post production, broadcast or live events. SmartView Duo features two independent 8" displays in a 3 RU design that’s less than one inch deep.

SmartVideo Duo handles all SD, HD and 3 Gb/s SDI video standards, and all screens can be remotely adjusted via your ethernet network! Use SmartView Duo in racks for local monitoring, for multi monitor video walls in master control rooms or for camera monitoring for production switchers!

A perfect companion to our Blackmagic Production camera 4K.
If you need a secondary monitoring solution, check out our range of hdmi monitors and our 4K SDI to HDMI converter

Hire the Blackmagic Smartview Duo

Tech Specs

CONNECTIONS
SDI Video Input Switchable between SD, HD and 3 Gb/s SDI.
Reclocked loop through output
Multi Rate Support Auto detection of 2K, HD or standard definition inputs
Ethernet 10/100 BaseT with loop through.
Tally 9-pin D connector
STANDARDS
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
SDI Colour Space REC 601, REC 709
SDI Auto Switching Automatically selects between SD, HD and 3 Gb/s SDI
Video Sampling 4:2:2 and 4:4:4
Color Precision 10-bit
SDI Format Support

525i: 59.94
625i: 50
720p: 50, 59.94, 60
1080i: 50, 59.94, 60
1080PsF: 23.98, 24, 25, 29.97, 30
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048x1080p: 23.98, 24, 25
2048x1080PsF: 23.98, 24, 25
2048x1556PsF: 23.98, 24, 25

SOFTWARE
Settings Control Via USB or Ethernet.
Operating systems Mac OS X 10.7.5 Lion or later, and
Mac OS X 10.9.4 Mavericks or later.
Windows™ 7 (32 and 64-bit) and 8.
DISPLAY
Display Element TFT Active Matrix LCD
Display Size 8-inch diagonal
Display Resolution 800 x 480 pixels
Response < 15 ms
Contrast Ratio Typically 500:1
Color Depth 16.7 million colors
POWER REQUIREMENTS
Power Supply 12V universal power supply - 2V - 15V range.
Built in IEC 90 - 240V AC power supply.
Power Consumption Less than 20 Watts

Blackmagic SmartView Duo monitor connections

4.00 Kg
 Blackmagic SmartView Duo SD/HD SDI production monitor

Pricing Estimates Pricing Estimates (inc VAT)

Daily: 15.00 Weekend: 22.50
2 Week: 111.00 Weekly: 60.00

 Shipping

We offer local pickup or Next day shipping to the UK : by 10.30am, by 12 or anytime services. Add this equipment to your kit list to see the return shipping estimate. [More]

 Insurance

Equipment must be insured for the duration of your shoot. We will need to see proof of Insurance - if you need cover then get an instant quote online. [More]

Item Insurance Value: 360.00
