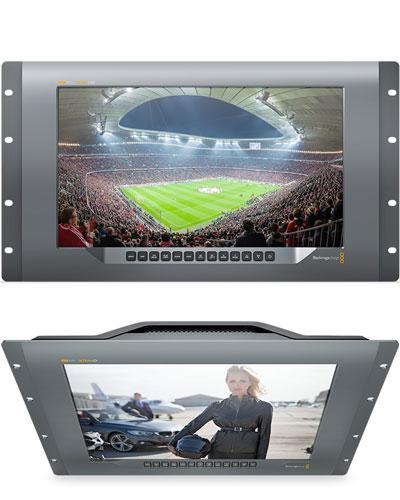

Blackmagic Smartview 4K 15.6" SDI field
monitor 12G-SDI
Available for hire: The Blackmagic Design SmartView 4K and HD location/studio monitor with 3D LUT support. The Blackmagic Design SmartView UltraHD broadcast monitor with 12G-SDI for a native display of 2160p60. The monitor will automatically detect...
Blackmagic Design
[bmd-sv4k]



£25/day (+ VAT)    £30.00/day (inc VAT)
Qty:

Available for hire: The Blackmagic Design SmartView 4K and HD location/studio monitor with 3D LUT support.

The Blackmagic Design SmartView UltraHD broadcast monitor with 12G-SDI for a native display of 2160p60.  The monitor will automatically detect the input format and instantly re-clock - supporting SD, HD and Ultra HD inputs over SDI using built-in Blackmagic Teranex hardware with two inputs and loop through.

Our 4K monitor is fitted with a VESA mount and our unit comes with a flexible bracket attached for mounting the monitor on a C-stand or similar, or it can be rack mounted in a 19inch rack as it has screw holes on each side. The 4K video monitor has an integrated backlit control panel for easy access to features such as 2 seperate 3D Lookup Table switches (LUTs) and H/V Delay, Blue Only, customisable frame markers and 2 seperate SDI inputs you can switch between. The Zoom button lets you view a magnified image of the signal and you can switch between two SDI input sources.

Its versatility extends further to having both AC and 12V DC inputs for battery or mains power, the inputs for power and signal (including the latest 12G SDI) are side mounted to save space in tight locations.

This monitor is supplied with a mains (UK) power cable and a V-lock battery plate adaptor. V-lock batteries are available separately (as many of our customers have their own). A mounting bracket for c-stands is pre-fitted to the VESA mount on the back.

Tech Specs

CONNECTIONS
SDI Video Input 2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked loop through output.
Optical Video Input SFP Optical Fiber connector cage.
SDI Video Output Automatically switches to input selection
Multi Rate Support Auto detection of 4K, 2K, HD or standard definition inputs.
Ethernet Gigabit ethernet with loop through
Tally 9-pin D connector
STANDARDS
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M.
SDI Colour Space REC 601, REC 709
SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
Video Sampling 4:2:2 and 4:4:4
SDI Format Support

SD Format:
525: 23.98, 29.97
625: 25

HD Format:
720p: 50, 59.94, 60
1080i: 50, 59.94, 60
1080PsF: 23.98, 24, 25
1080p: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

2K format
2048x1080p: 23.98, 24, 25
2048x1080PsF: 23.98, 24, 25, 29.97, 30
2048x1080p DCI: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
2048x1080PsF DCI: 29.97, 30

Ultra HD Format:
2160p: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

4K Format:
4Kp DCI: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
SOFTWARE
Settings Control Via USB or Ethernet.
Operating systems Mac OS X 10.7.5 Lion or later, and
Mac OS X 10.9.4 Mavericks or later.
Windows™ 7 (32 and 64-bit) and 8.
DISPLAY
Display Element TFT Active Matrix LCD
Display Resolution 3840 x 2160 pixels
Response 25 ms
Contrast Ratio 1000:1
Color Depth 16.7 million colors
POWER REQUIREMENTS
Power Supply 12V universal power supply - 2V - 15V range.
Built in IEC 90 - 240V AC power supply.
Power Consumption Less than 25 Watts

Blackmagic SmartView 4K monitor connections

14.00 Kg
Blackmagic Smartview 4K 15.6" SDI field monitor 12G-SDI
Blackmagic Smartview 4K 15.6" SDI field monitor 12G-SDI
Blackmagic Smartview 4K 15.6" SDI field monitor 12G-SDI

Pricing Estimates Pricing Estimates (inc VAT)

Daily: £30.00 Weekend: £45.00
2 Week: £222.00 Weekly: £120.00

 Shipping

We offer local pickup or Next day shipping to the UK : by 10.30am, by 12 or anytime 9-4pm services. Add this equipment to your kit list to see the return shipping estimate. [More]

 Insurance

Equipment must be insured for the duration of your shoot. We will need to see proof of Insurance - if you need cover then get an instant quote online. [More]

Item Insurance Value: £2,000.00
