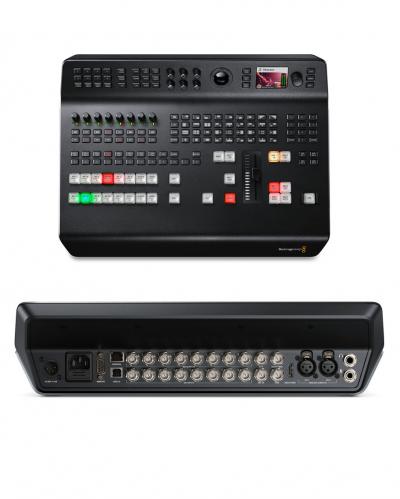

Blackmagic ATEM Television Studio Pro 4K
Switcher 12G-SDI
Now available for hire: The Blackmagic ATEM Television Studio Pro 4K video switcher panel. As a replacement to our ATEM 1 ME rack unit we have the TV Studio 4K Pro which incorporates a physical panel switcher although you will probably want a laptop...
Blackmagic Design
[ATEM4KTV]



£37.5/day (+ VAT)    £45.00/day (inc VAT)
Qty:

Now available for hire: The Blackmagic ATEM Television Studio Pro 4K video switcher panel. As a replacement to our ATEM 1 ME rack unit we have the TV Studio 4K Pro which incorporates a physical panel switcher although you will probably want a laptop control too. We have just adjusted our Live switching kits to make use of this new switcher.

Shipped in a Peli hard case for transport. Supplied with a short UK mains power lead only.
See our Live production kits for more fly away kits and options for monitors and cabling.

ATEM Television Studio Pro 4K features 8 independent 12G-SDI inputs, for working in all popular HD and Ultra HD formats up to 2160p60. Each input features re-sync as well as a full low latency standards converter, which means the input is automatically adapted to the switchers format - so you can have 8 inputs, all running different video formats! The upgraded Fairlight audio mixer features dynamics, 6 band parametric EQ, dual mono channel split and stereo simulator with audio delay on the analog inputs - perfect for live streaming. The advanced Fairlight control is in the Laptop software, but the panel itself has AFV / on/off and levels control with led ballistics for each channel plus a headphone jack so you can finally hear the audio thats is going out of the program out.

ATEM Television Studio Pro 4K also features the ATEM Advanced Chroma Key, Ultra HD multi‑view and motion clips in the media pool. Link via Ethernet to the Hyperdeck Minis and laptop control software for extra control over the media clips and stills for logos and DVE work and building powerful macros.

Download the ATEM TV Studio Pro 4K instruction manual here - Blackmagic ATEM TV Studio Pro 4k manual

Audio Mixing

All ATEM switchers are compatible with Mackie™ protocol USB control panels for live audio mixing! Simply connect a third party USB fader panel to your Mac or PC computer to get real time fader control of every audio channel. As you adjust levels on the panel the virtual software faders move in sync with you. You can even use the mouse to adjust levels on your computer and the flying faders will track your movement. Combining a fader panel with the built in mixer gives you the highest quality audio mixing experience.

Use the built in multi channel audio mixer to switch and mix audio from all video, analog XLR and talkback headset mic inputs. Quickly adjust levels from all inputs, view meters, turn channels on or off, use AFV and more! The on button lets you add an audio source to your program even when another video source is live. A quick tap on an AFV button lets audio follow video as you switch.

There is a built-in quality green screen keyer brought from the new ATEM 4 ME to give you precision control knobs so you can create the perfect chroma key quickly and accurately. With the control at your fingertips, you can adjust live key settings instantly if lighting or shadows change during the broadcast so you will always deliver incredible results.

Talkback and Blackmagic Camera Control and PTZ control

Connect the SDI camera out return feeds to your Blackmagic camera (SDI in) and you can get control over compatible lenses for focus, Iris and control the ISO and use Davinci like colour control - these settings override the camera settings and allow you to operate the camera from the ATEM panel too. Channels 15 and 16 on the SDI embedded audio can be used for Talkback to Blackmagic camera operators with the correct cameras.

RS422 remote PTZ camera support from the panel. Plug in compatible PTZ cameras and control them directly form the ATM.

Connections
Total Video Inputs: 8
Total Outputs: 12
Total Aux Outputs: 1

SDI Rates: 1.5G, 3G,6G,12G.

Total Audio Inputs
2 x XLR. 1 x Microphone.
Total Audio Outputs : 1 x Headphone.

SDI Video Inputs
8 x 10-bit HD/UHD switchable. 2 channel embedded audio.

HDMI Video Inputs: None
Reference Inputs:
Tri-Sync or Black Burst.

Video Input Re‑Sync:
On all 8 inputs.

Frame rate and format convertors
On all 8 inputs.

SDI Program Outputs:
9 x 10-bit HD/UHD switchable.

SDI Audio Outputs
2 Ch embedded into SDI output.

Total Multi Views: 1
SDI Multi View Outputs: 1
HDMI Multi View Outputs: 1




Standards
SD Video Standards - None
HD Video Standards:
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94

Ultra HD Video Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94

SDI Compliance : 292M and 424M, 2081, 2082.

Video Sampling : 4:2:2 10‑bit

Color Precision : 4:2:2 10‑bit

Color Space: 4:2:2 YUV

Input Resolutions for Computers

720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Colorspace Conversion: None

Processing Delay: 6 Lines

Audio Mixer
12 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Delay line and Stereo Synthesizer on the XLR inputs only.
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.



13.00 Kg
 Blackmagic ATEM Television Studio Pro 4K Switcher 12G-SDI

 Blackmagic ATEM Television Studio Pro 4K Switcher 12G-SDI
 Blackmagic ATEM Television Studio Pro 4K Switcher 12G-SDI
 Blackmagic ATEM Television Studio Pro 4K Switcher 12G-SDI

Pricing Estimates Pricing Estimates (inc VAT)

Daily: 45.00 Weekend: 67.50
2 Week: 333.00 Weekly: 180.00

 Shipping

We offer local pickup or Next day shipping to the UK : by 10.30am, by 12 or anytime services. Add this equipment to your kit list to see the return shipping estimate. [More]

 Insurance

Equipment must be insured for the duration of your shoot. We will need to see proof of Insurance - if you need cover then get an instant quote online. [More]

Item Insurance Value: 2,630.00
