Blackmagic Teranex Mini HDMI to SDI 12G
converter
Available to hire now - the Blackmagic Teranex HDMI to SDI 12G Mini Converter. Supporting up to 12G-SDI data rates and all SD, HD and Ultra HD formats up to 2160p60 and offering multiple audio output connections and an Ethernet control and PoE port,...
Blackmagic Design
[TerHDMI-SDI1]



£10.83/day (+ VAT)    £13.00/day (inc VAT)
Qty:

Available to hire now - the Blackmagic Teranex HDMI to SDI 12G Mini Converter.

Supporting up to 12G-SDI data rates and all SD, HD and Ultra HD formats up to 2160p60 and offering multiple audio output connections and an Ethernet control and PoE port, the Teranex Mini SDI to Audio 12G is a great solution for rack-mount as well as cable duct and desktop installations.

This unit allows you to convert from HDMI to 12G-SDI. It works with all video formats including SD, HD, 6G and 12G-SDI rates up to 2160p60 and includes an up converter for converting HD to Ultra HD. It will alsoEmbed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.

Connect the audio signal to a wide range of audio equipment, such as mixers, decks, and audio monitors.

Comes supplied with a UK mains power lead but can also be powered over Ethernet using a suitable 48VDC POE+ switch.

Can be rack mounted on a Teranex shelf in a rack or free standing.

Specifications

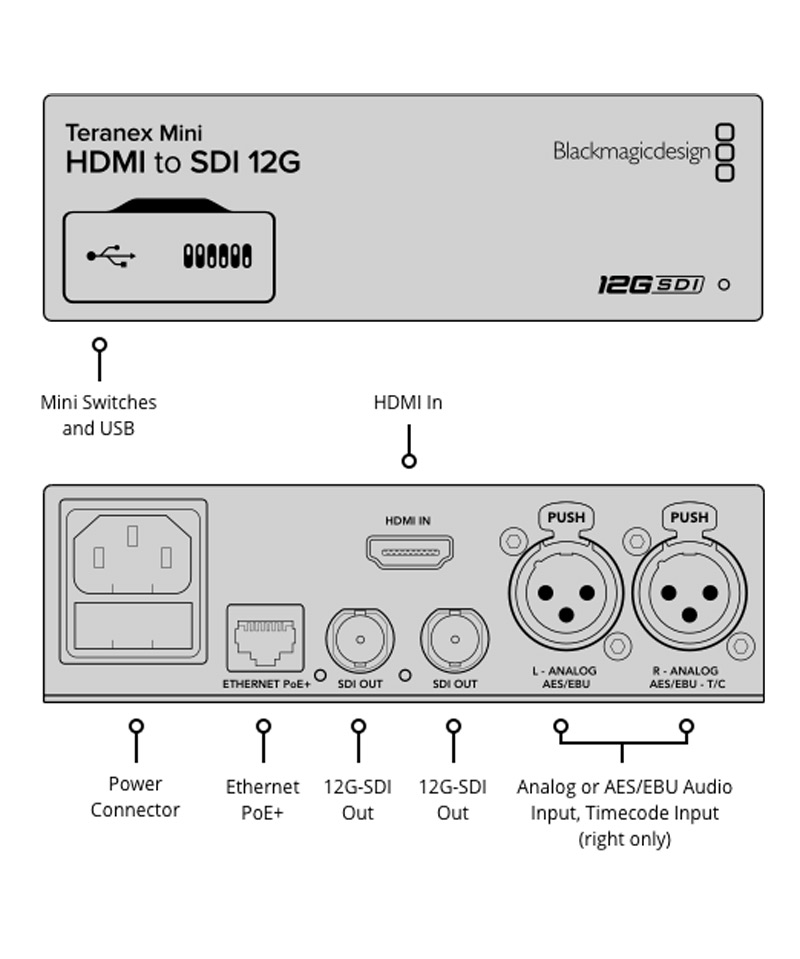

Connections

  • SDI Video Outputs: 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input.
  • HDMI Video Inputs: 1 x HDMI 2.0 type A.
  • Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
  • Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
  • Embedded Audio Support: 16 channels.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
  • Updates and Configuration: USB or Ethernet.
  • Reclocking: Yes

SDI Output Standards

  • SD Video Standards:
    525i 59.94 NTSC and 625/i 50 PAL
  • HD Video Standards:
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25 , 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60
  • 2K Video Standards:
    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
  • Ultra HD Video Standards:
    2160p23.98, 2160p24, 2160p25, 2160p29.97,
    2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards:
    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
  • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI.
  • SDI Video Sampling: 4:2:2
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV

HDMI Input Standards

  • SD Video Standards:
    525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60
  • 2K Video Standards
    1080p23.98, 1080p24, 1080p25
  • Ultra HD Video Standards
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • HDMI Color Space: REC 601, REC 709
  • HDMI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
  • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources.

Settings & Power

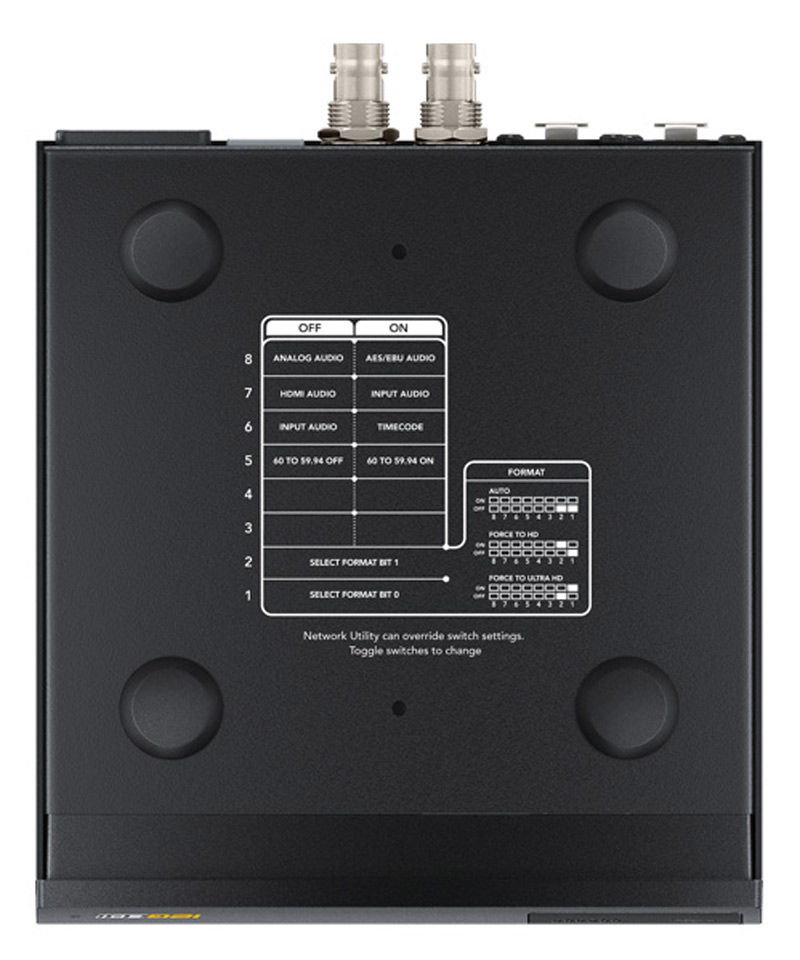

  • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
  • Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
  • Power Consumption: 16 Watts
  • Operational Voltage Range: 100 - 240V AC
3.00 Kg
 Blackmagic Teranex Mini HDMI to SDI 12G converter

 Blackmagic Teranex Mini HDMI to SDI 12G converter
 Blackmagic Teranex Mini HDMI to SDI 12G converter
 Blackmagic Teranex Mini HDMI to SDI 12G converter

Pricing Estimates Pricing Estimates (inc VAT)

Daily: £13.00 Weekend: £19.50
2 Week: £96.21 Weekly: £52.00

 Shipping

We offer local pickup or Next day shipping to the UK : by 10.30am, by 12 or anytime 9-4pm services. Add this equipment to your kit list to see the return shipping estimate. [More]

 Insurance

Equipment must be insured for the duration of your shoot. We will need to see proof of Insurance - if you need cover then get an instant quote online. [More]

Item Insurance Value: £470.00
