Available for for hire - TASCAM's award winning DR-60D Linear PCM portable audio recorder.
The DR-60D is a 4-track solid-state recorder utilizing high-grade HDDA pre-amps, AD converters, and a durable but lightweight structure and shape.

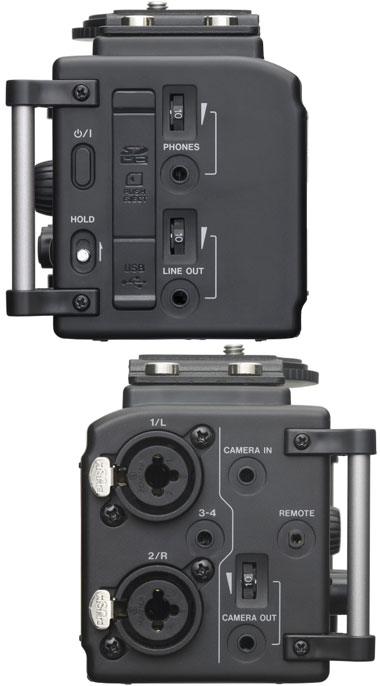

This device will fit snuggly under any camera or into any rig, and record up to 96kHz/24-bit high quality audio straight to SD/SDHC media. Filmmakers have at their disposal two 1/4"-XLR Locking Combo MIC/LINE Inputs, 3.5mm Stereo MIC Input, Camera In, Camera Out, Line Out and Headphone Out. Both 1/4"-XLR Combo Inputs supply +48V Phantom Power and the 3.5mm Input supplies Plug-In Power for microphones requiring a bias voltage.
The DR-60D is incredibly easy to use, employing TASCAM's very popular user interface and external controls for every major operation. The body structure, soft-touch keys and dials are designed specifically to help eliminate handling noise. The multiple record modes include, 4-Channel Record, Auto Record and TASCAM's Dual Record "Safety Track" Mode make the DR-60D one of the most versatile recorders on the market.
DR-60D SPECIFICATIONS
Recording media |
SD card(64MB to 2GB), SDHC card(4GB to 32GB) |
Recording format |
|
WAV |
44.1/48/96kHz, 16/24bit |
BWF |
44.1/48/96kHz, 16/24bit |
Number of channels |
4channel (stereo x2) |
Analog audio input |
|
1/L, 2/R connectors |
|
Connector |
XLR-3-31 (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4")TRS standard jack |
Set to "MIC / MIC+PHANTOM" |
|
Input impedance |
2k ohms |
Phantom power |
48V +/-4V(10mA/CH) / 24V +/-4V(10mA/CH) |
Maximum input level |
0dBu |
Minimum input level |
-72dBu |
MIC input gain |
TRIM MAX |
LOW |
+11dB |
MID |
+36dB |
HIGH |
+52dB |
Set to “LINE” |
|
Input impedance |
10k ohms or more |
Standard input level |
+4dBu |
Maximum input level |
+24dBu |
3-4 connector |
|
Connector |
3.5mm (1/8") stereo mini jack (this connector can be supplied plug-in power) |
Input impedance |
10k ohms |
Maximum input level |
+10dBV |
Minimum input level |
-50dBV |
MIC input gain |
TRIM MAX |
LOW |
+3dB |
HIGH |
+26dB |
CAMERA IN connector |
|
Connector |
3.5mm (1/8") stereo mini jack |
Input impedance |
10k ohms |
Standard input level |
-10dBV |
Maximum input level |
+6dBV |
Analog audio output |
|
CAMERA OUT connector |
|
Connector |
3.5mm (1/8") stereo mini jack |
Output impedance |
200 ohms |
Standard output level |
-50dBV |
Maximum output level |
-30dBV |
LINE OUT connector |
|
Connector |
3.5mm (1/8") stereo mini jack |
Output impedance |
200 ohms |
Standard output level |
-10dBV |
Maximum output level |
+10dBV |
PHONES connector |
|
Connector |
3.5mm (1/8") stereo mini jack |
Maximum output level |
50mW + 50mW |
USB |
|
Connector |
Mini-B type |
Format |
USB2.0 HIGH SPEED mass storage class |
REMOTE |
|
Connector |
2.5mm TRS jack |
Power |
Four AA batteries(Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter(TASCAM PS-P515U, sold separately),
Dedicated external battery pack(TASCAM BP-6AA, sold separately) |
Power consumption |
5.4W |
Continuous operation time |
2ch WAV, 44.1kHz, 16bit rec |

6.00 Kg
|
