Portkeys BM5 5inch HDMI-SDI 2000 Nits
Daylight Monitor

Now available to hire, the Portkeys BM5 5" HD monitor with HMDI and 3G-SDI inputs as well as touchscreen camera control for certain camera models. The PortKeys BM5 is a super bright 2000 NITS monitor for use in bright daylight and also has 3D...

PortKeys

[portkeybm5]

Now available to hire, the Portkeys BM5 5" HD monitor with HMDI and 3G-SDI inputs as well as touchscreen camera control for certain camera models.

The PortKeys BM5 is a super bright 2000 NITS monitor for use in bright daylight and also has 3D LUTS for on-set monitoring.
It features a touchscreen and built in camera control module for a range of camera models.

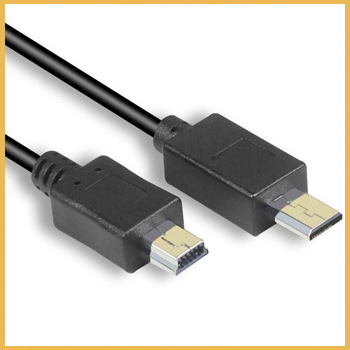

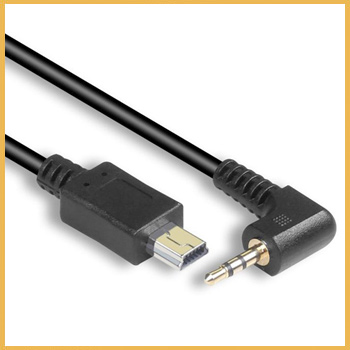

The camera control aloows you to perform the following funtions with an optional cable: Take Picture, REC, AV, TV, ISO, Auto Focus, Zoom, Manual Focus..
At present we have camera contol cables for the following cameras:
Sony: A9, A7R3, A7M3, A7R2, A7S2, A6000, A6300, A6400, A6500, RX100

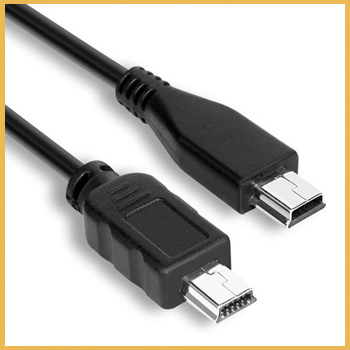

Canon: 1D X MARK II, 5DS, 5DS R, 5D MARK III, 5D MARK II, 6D MARK II, 6D, 80D, EOS R

In the kit:
The Portkeys BM5 monitor will be supplied with a LEMO D-tap power cable and a coldshoe mount in a flight case.
The monitor can also be powered by Sony batteries which are available separately

Optional Accessories

Features:

• 5" 1920x1080 High brightness Brightness (2000nit) screen

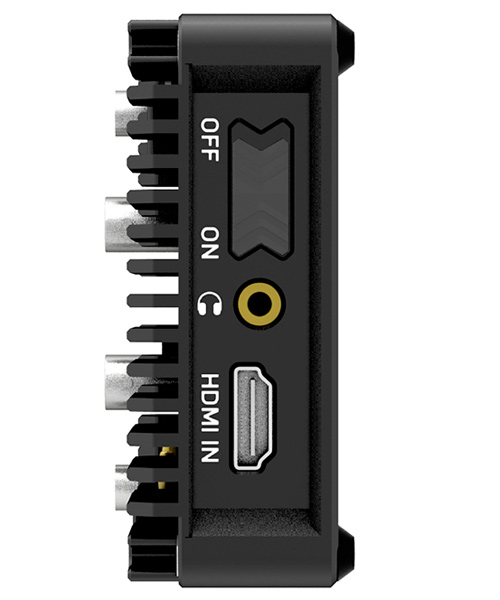

• HD SDI and HDMI inputs
• HD SDI loop through
• User defined 3D LUTs
• On screen camera control for a rance of camera
• Waveform Guides, Zebra pattern, Grids, Peaking, False Color, UnderScan, Check Field H/V Delay
• Audio Meters
• Zooming

Video Signal Support:

HDMI:

• 1920×1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
• 1920×1080psf: 23.97, 24, 25, 29.97, 30
• 1920×1080i: 50, 59.94, 60
• 1280×720p: 50, 59.94, 60
• 720×576p & 720×576i: 50
• 720×480p & 720×480i: 50, 59.94, 60

HD SDI:

• 1920×1080p: 50, 59.94, 60
  1920×1080p: 50, 59.94, 60 - YUV422
  1920×1080p: 23.98, 24, 25, 29.94, 30 - YUV444/YUV422/RGB444
  1920×1080psf: 23.98, 24, 25, 29.97, 30 - YUV444/YUV422/RGB444
  1920×1080i: 50, 59.94, 60 - YUV444/YUV422/RGB444
  1280×720p: 50, 59.94, 60 - YUV444/YUV422/RGB444
  720×480i: 59.94 - YUV422
  720×576i: 50 - YUV422

Specifications:

• Screen Size    5"
• Dimension    137x83x31.5mm
• View Angle    178°H/178°V
• Brightness    2000nit
• Resolution    1920x1080
• Contrast Ratio    1000:1
• Supported SDI Signals:
• Weight    350g
• Colour Depth    8bit
• Backlight    WLED
• Material    Aluminium & Gehard glass
• Input Voltage    DC 7-24V
• Power Consumption    13W
• Battery    SONY NP-F970/960/F750/F550

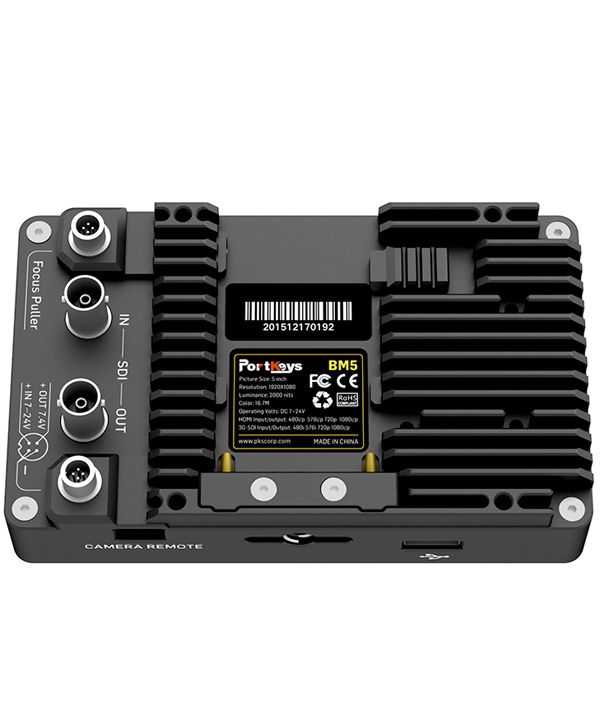

• Signal Input    3G/HD/SD-SDI、HDMI、USB
• Signal Output    3G/HD/SD-SDI
• Power Input Interface    LEMO
• Battery Output Interface    LEMO
