Blackmagic SDI-HDMI 4K and HD mini
converter - Heavy Duty
[bm-sdi-4khdm]



£7.20/day (inc VAT)
Qty:

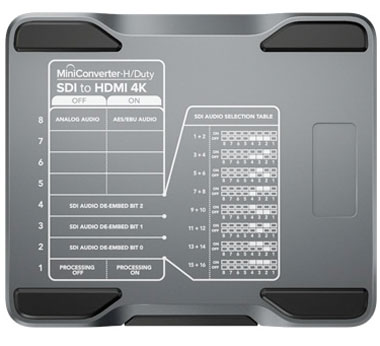

The heavy duty Mini Converter SDI to HDMI 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video sources to HDMI in SD, HD and Ultra HD video formats. You can also de-embed SDI audio to HDMI, AES/EBU or balanced analog audio out. Imagine using big screen Ultra HD TV’s and projectors for broadcast monitoring! The built in down converter even allows Ultra HD monitoring on HD televisions!.

Connect Single Link 6G-SDI to the newest HDMI 4K projectors and televisions that support Ultra HD over a single HDMI link. Lets you build Ultra HD monitoring with ease, while still working with all your regular SD and HD equipment!

This unit is ideal for use with our Blackmagic Production Camera 4K camera, especially if you intend to use a HDMI monitor or EVF on your shoot.

This unit will be supplied with a mains adapter and d-tap powering cable. V-lok batteries and power plates are available seperately

Click to download the Blackmagic converters User Manual: Blackmagic converters user manual

Hire the Blackmagic SDI-HDMI 4k converter



Connections
SDI Video Input 1 x SD, HD or 6G-SDI.
SDI Video Output Loop-through (Same format as input)
HDMI Video Output HDMI type A out
SDI Redundant Input Automatically switches over if main SDI input is lost.
Multi Rate Support Auto detection of SD, HD or 6G-SDI
Reclocking Yes
Standards
SD Format Support

525L 29.97 NTSC, 23.98 NTSC
625: 25 PAL

HD Format Support 720p: 59.94, 60
1080i: 50, 59.94, 60
1080PsF: 23.98, 24, 25, 29.97, 30
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K Format Support 2048 x 1080PsF: 23.98, 24, 25
2048 x 1080p: 23.98, 24, 25
4K Format Support

3840 x 2160p: 23.98, 24, 25, 29.97, 30
4096 x 2160p: 24

SDI Compliance SMPTE 292M,SMPTE 259M,SMPTE 296M,SMPTE 372M,SMPTE 424M and SMPTE 425M
SDI Auto Switching Automatically detects SD, HD or 6G-SDI.
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB
HDMI Format Support

625 PAL: 25
525 NTSC: 29.97, 23.98
720p: 50, 59.94, 60
1080i: 50, 59.94, 60
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
3840 x 2160p: 23.98, 24, 25, 29.97, 30,
4096 x 2160p: 24

HDMI Color Space YUV and RGB
HDMI Color Precision 4:2:2 and 4:4:4

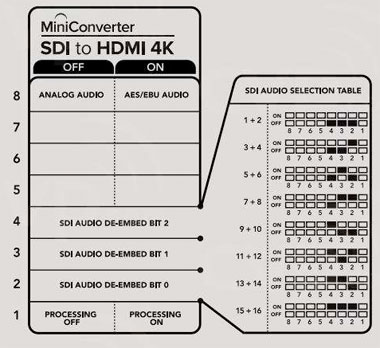

Settings Control Mini Switches or USB software
Power Requirements
Power Supply +12V universal power supply included. Cable tie point.
Power Consumption 5.2 Watts
Operational Voltage Range 12 - 30 V DC

Blackmagic mini converter

3.00 Kg
 Blackmagic SDI-HDMI 4K and HD mini converter - Heavy Duty

Pricing Estimates Pricing Estimates (inc VAT)

Daily: 7.20 Weekend: 10.80
2 Week: 53.28 Weekly: 28.80

 Shipping

We offer local pickup or Next day shipping to the UK : by 10.30am, by 12 or anytime services. Add this equipment to your kit list to see the return shipping estimate. [More]

 Insurance

Equipment must be insured for the duration of your shoot. We will need to see proof of Insurance - if you need cover then get an instant quote online. [More]

Item Insurance Value: 240.00
